Settings affecting all users

The settings below apply to all PlanogramBuilder users sharing your accountID, typically all users in your company.

Note: The settings in this section can only be set by PlanogramBuilder Administrator.

Interface customization

The following settings allow you to display your own company name and logo in the PlanogramBuilder window.

Application title

Defines the title of the application for all PlanogramBuilder users in your company (sharing your accountID). Normally, the title already shows your company name or your name if you are an individual person. The title appears in light blue at the upper right corner of PlanogramBuilder screen (cf. the image of Screen Layout).

• Supported values: text, including Unicode characters for non-Latin text values
• Default value: the company name (or the first and last name for individual persons) entered when ordering your license
• Example: zVisuel SA

Application logo

Defines an optional logo picture on the title bar visible to all PlanogramBuilder users in your company (cf. image of Screen Layout).

• Supported values: filename and extension in supported format (jpg, png, bmp, gif, tif)
• Default value: empty
• Example: zVisuel logo.png

Instructions:

1. Click on Browse.
2. Select the desired image file on your PC.
3. Click on Open.
4. Wait for the image to upload.

To remove the logo image, click on the small red cross button.

Note: Images with a transparent background are supported in PNG format. When such an image is used, the normal PlanogramBuilder title bar color is displayed behind the transparent part of the logo image.

Database configuration

The following settings let you customize some database properties to match the way you describe and classify your products. These fields should be defined before adding products in the database.

Item classification properties (Settings)

PlanogramBuilder provides three customizable properties to hierarchically classify your products and accessories to best match your internal product classification:

• Level 1: the first level of classification.
• Level 2: the second level of classification.
• Level 3: the third level of classification.

Although not compulsory, it is convenient to define the names of each property to match a logical hierarchical order. This will make it easier to drill down in the Product catalog when searching for products. For example, define the first level as Category, the second level as Product line, not the opposite.

• Supported values:
• • Brand
  • Brandline
  • Category
  • Group
  • Main group
  • Manufacturer
  • Product line
  • Region
  • Sub-brand
  • Subcategory
  • Subgroup
  • Custom: select this if the predefined names don’t fit your needs. A new text field will appear where you can type the desired name, such as shown below with Year and Country.

• Default values:

Examples of possible combinations:

	Default names		Example 1		Example 2		Example 3
Level 1	Category		Category		Category		Country
Level 2	Brand		Subcategory		Group		Category
Level 3	Product line		Region		Year		Subcategory



Important note: If you enter a custom name for a classification property, don’t use a predefined item property name. For example, do not assign the name Reference or Enabled.

Once you have defined the names for the three properties, you can assign values to each product and accessory in the database (cf. Item properties).

These properties and their values can then be shown in the following PlanogramBuilder areas:

• Database item list
• Catalog of products, Catalog of accessories
• Labels
• Text of item tooltips
• Project item list
• Reports

Item custom properties (Settings)

PlanogramBuilder provides up to 20 user-defined optional properties to add attributes to your products and accessories (not applicable to custom Room elements, custom Bay components, nor materials).

To enable a custom property, you must name it. The property thereby becomes available in your database.

• Supported values: text, including Unicode characters for non-Latin text values
• Default value: empty
• Example: Weight

These properties and their values can then be shown in the following PlanogramBuilder areas:

• Database item list
• Catalog of products, Catalog of accessories
• Labels
• Text of item tooltips
• Project item list
• Reports

Add a custom property

1. Click on the button with a + sign.

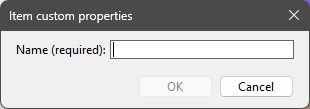

2. A dialog window opens as shown below.

3. Type the desired name for your custom property. For example: Weight.
4. Click OK.
5. The dialog window closes.
6. The newly created property is represented by a new tile such as this one (example with a property named A):

7. Once you have defined the name of a property, you can assign values to each product and accessory in the database: Item properties.

Important note: don’t use a predefined item property name for your custom property names. For example, do not assign the name Reference or Enabled.

Modify a custom property

1. Click on the tile name.
2. A dialog window opens, showing the selected property name.
3. Type a new name.
4. Click OK.
5. The dialog window closes.
6. The property name is updated and represented on the corresponding tile.
7. Once you have renamed a property, you can assign values to each product and accessory in the database: Item properties.

Important note: Don’t use a predefined item property name for your custom property names. For example, do not assign the name Reference or Enabled.

Warning: if you rename a custom property, make sure to also update the corresponding column header in any Excel file you may use to import items. cf. Import list + images for details.

Re-order custom properties

1. If you have several tiles, grab the two lines on the tile and drag it up or down.
2. The tile is repositioned and the order changed.

Advice: if you just want to change the order of custom properties in the columns of Project item list, you can do so directly with Column order.

Delete a custom property

1. Click on the X on the tile.
2. The custom property is deleted.

Warning: deleting a custom property also removes all the values you may have assigned to products and accessories for the deleted property. Be sure to perform a backup of your database beforehand in case you are not sure if you might still need this property and values (Export list).

Project classification properties (Settings)

PlanogramBuilder provides three customizable properties to hierarchically classify your projects to best match your internal project classification:

• Level 1: the first level of classification.
• Level 2: the second level of classification.
• Level 3: the third level of classification.

Although not compulsory, it is convenient to define the names of each property to match a logical hierarchical order. This will make it easier to find projects in the list of projects and in the catalog of template. For example, define the first level as Group, the second level as Sub-group, not the opposite.

• Supported values: text, including Unicode characters for non-Latin text values
• Default values: empty
• Examples of possible combinations:

	Example 1		Example 2
Level 1	Category		Country
Level 2	Group		Store
Level 3	Subgroup		Aisle



Important note: Make sure not to use the same name as a predefined project property (for example Name (Project properties) or Comment).

Once you have defined the names of the three properties, you can assign values to each project in Project properties.

These properties and values are then also shown in the Template catalog.

User rights settings

In this section, you will find settings to control how users can edit and share planograms.

Shared projects

If there are several PlanogramBuilder users in your company, you can choose how they will be able to share their planogram projects.

• Supported values:

• Default value: Administrators only

Notes:

• No matter the above setting, projects marked as templates can always be accessed by other users (cf. Template).
• No matter the above setting, projects marked as templates can only be saved by the respective owner. To make changes to templates if you are not the owner, first uncheck:  Template.
• No matter the above setting, projects with Locked (Project properties) cannot be saved. To make changes to such planograms, first uncheck Locked (Project properties).
• No matter the above setting, a project that is already opened by a user cannot be opened by another user. The project must first be closed to allow opening it by another user.

Standard users can edit bays

Enable or disable all shelving creation and editing features for Standard Users.

• Supported values:

• Default value: Checkmarked

Advice: Disabling shelf editing is typically useful when one or more PlanogramBuilder Administrator(s) is (are) in charge of creating the bays and making them available to other users (with Template or  Shared projects).

Allow clear DB

Toggles the display of the following button on Database toolbar: Clear DB.

To minimize the unintentional full deletion of the database content, this toggle must be checkmarked by an administrator before being able to see and use the command which actually clears the database.

• Supported values:

• Default value: Not checkmarked



Notes:

• Unlike most other settings, check marking this checkbox does not persist after closing PlanogramBuilder. It must be re-enabled at each new session.
• cf. Clear DB for instructions on deleting the database content.
