View

This section lets you control the display of interface panels and planograms on screen.

Tools and commands (View)

The toolbar includes the following buttons:

They are also available in Main Menu > View:

Note: most of the above toggles can also be controlled via checkboxes (cf. Visualization > View parameters).

Project item list (toggle)

This toggles displaying the list of products and accessories in your current planogram. cf. the description of this pane in the dedicated section: Project item list.

• Keyboard shortcut: L
• Supported values:

• Default value:

Note: The list can also be closed by clicking on the cross icon in its upper right corner.

Reset panes

This command resizes and repositions all the user interface panes to their default values.

View labels

This button and menu item toggles the visibility of labels on products and accessories. (also available as a checkbox in View parameters.)

• Keyboard shortcut: V
• Supported values:

• Default value: Not pressed (not checkmarked)

Notes:

• You can set the style and content of labels (cf. Visualization > Labels).
• The text labels are orientated horizontally except if they better fits vertically, typically on products which are thin and tall.

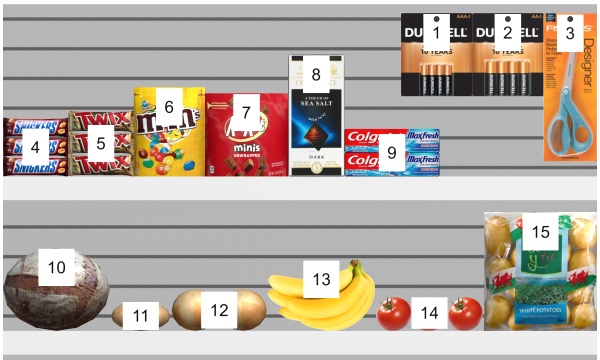

Example of View labels



Font size (tool)

Use this tool to adjust the size of labels with your mouse.

Instructions:

1. Display the labels with View labels.
2. Activate Font size (tool) from the menu or the toolbar button.
3. Place your mouse cursor in the visualization area.
4. Press and hold the left mouse button.
5. Move your mouse left, right, up or down. The text size changes.
6. Release the mouse button.
7. Activate another tool to exit this feature. E.g., Zoom

To set the text size back to its default value:

1. Activate the tool from the menu.
2. Place your mouse cursor with the visualization area.
3. Click the left mouse button.
4. Activate another tool to exit this feature. E.g., Zoom

Advice: You can also set the font size value precisely with the following parameter: Font height (Labels). That section also explains in detail which label texts are affected by this tool.

View as boxes

This button and menu item toggles a special display mode showing all the products and accessories in your project as a simple boxes. (also available as a checkbox in View parameters.)

• Supported values:

• Default value: Not pressed (not checkmarked)



Example of View as boxes





View edges

This button and menu item toggles the drawing of edge lines on objects. (also available as a checkbox in View parameters.)

This is useful to help distinguish each product and bay component in your planograms.

• Keyboard shortcut: E
• Supported values:

• Default value:

If checkmarked, the edges are drawn for the following cases and objects:

• For all bay components (including in Create bays)
• For Generic products, cf. Insert generic product.
• For all products, if View as boxes is activated.

Example with View edges and View as boxes checkmarked

Example with View edges checkmarked, but View as boxes not checkmarked

Highlight overlaps

This button and menu item toggles highlighting the products which physically overlap other items or bay components. (also available as a checkbox in View parameters.)

It is especially useful to identify overlaps in your project if Collisions (Settings) is disabled. Because in this case items can easily be mistakenly placed partially over other items.

• Supported values:

• Default value: Not pressed (not checkmarked)



Example of Highlight overlaps

View front panels

This button and menu item toggles the visibility of bay components of type: Front panel. (also available as a checkbox in View parameters.)

Hiding front panels allows selecting and editing products behind the panels, for example in case you have glass doors on a cooler. You can then display the front panels once all items behind are positioned.

• Supported values:

• Default value: Pressed (checkmarked)



Note: cf. Front panel for details on such bay components.

View peg hooks

This button and menu item toggles displaying the actual hooks of pegged products. (also available as a checkbox in View parameters.)

Showing the hooks can help visualizing where the peg is located exactly, including any offset.

• Keyboard shortcut: K
• Supported values:

• Default value: Pressed (checkmarked)

Example of View peg hooks

View dimensions

This button and menu item toggles the display of dimension lines and values for the objects in your planogram. (also available as a checkbox in View parameters.)

• Keyboard shortcut: D
• Supported values:

• Default value: Not pressed (not checkmarked)

Depending on the context, various dimensions are displayed on screen:

By default, the overall width and height are shown for each isolated bay and each group of adjacent bays:



Additionally, for each bay with at least one selected shelf, vertical shelf measures are shown. And for each bay with at least one Dividing panel selected, lateral distances between each Dividing panel are displayed, as shown below:



The dimensions of any bay, bay component or block of products are also displayed when clicking on one of its round handles in the corresponding editing mode, as shown below:



Note: a dimension is only displayed if the viewing angle and the available space allows. If you can’t see a desired dimension, use Zoom, Pan tools to adjust the view accordingly.

View flow direction

This button and menu item toggles the display of arrows indicating the direction of traffic at the base of each bay in your project. (also available as a checkbox in View parameters.)

This command has no effect on bays for which Flow direction hasn't been defined. cf. Flow direction for details on how to set the flow direction for your bays.

• Supported values:

• Default value: Not pressed (not checkmarked)



Full screen

This button and menu item toggles the full screen mode.

• Keyboard shortcut: F11: toggles Full screen

In this mode, the planogram visualization is maximized to fill the whole screen.

You can still use commands for Edit, View and Camera from the toolbars and from the main context menu.

Mouse & keyboard shortcuts can still be used to perform any supported actions.

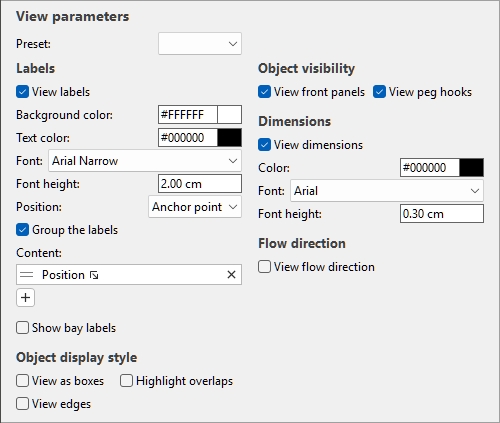

View parameters

This pane contains parameters to configure what objects are visible and how they are displayed in the visualization area.



Presets (View parameters)

Your current settings for View parameters can be saved and retrieved as presets.

Preset (View parameters)

A drop-down list where you can select a saved preset. If a saved preset is currently used, its name is displayed.

The list of presets saves parameters per user. The presets saved here are available to you with any planogram project.

Create a preset (View parameters)

1. Under View parameters, adjust the view parameters as desired.
2. Right-click anywhere within the View parameter panel.
3. In the context menu, choose Presets > Save as.
4. Type the name of the preset to save in the text box.
5. Click Save.
6. The saved preset is now available in the drop-down list.

Apply a preset (View parameters)

1. Select a preset in the drop-down list to load it.
2. The view parameters changes to match the loaded preset.

Delete a preset (View parameters)

1. Select a preset in the drop-down list to load it.
2. Right-click anywhere within the View parameter panel.
3. In the context menu, choose Presets > Delete.

Labels

Labels with customizable text can be displayed as overlays on products, accessories and furniture.

The labels help identify these items when editing and publishing planograms.

View labels

This checkbox toggles label visibility, exactly as the corresponding button and menu item. cf. View labels.

Background color (Labels)

The background color of labels.

Note: Only editable if View labels is checkmarked.

Note: this color doesn’t apply to products and accessories if  is checkmarked.

The color can be specified as follows:

Color text field:

• Supported values: HTML color codes (with or without the # prefix, not case-sensitive). Complete reference of theses HTML color codes can be found for example at:

• Default value: #FFFFFF (white)
• Example: 000000 (black)

Color sample:

1. Click on the color sample next to Color to display the color palette.
2. Select the desired color.
3. Click OK.

Text color (Labels)

The text color of labels.

Note: Only editable if View labels is checkmarked.

Note: this color doesn’t apply to products and accessories if  is checkmarked.

The color can be specified as follows:

Color text field:

• Supported values: HTML color codes (with or without the # prefix, not case-sensitive). Complete reference of theses HTML color codes can be found for example at:

• Default value: #000000 (black)
• Example: FFFFFF (white)

Color sample:

1. Click on the color sample next to Color to display the color palette.
2. Select the desired color.
3. Click OK.

Font (Labels)

The typeface of labels.

It also controls the font of texts displayed on generic products and products without images which use the following shape: box.

• Supported values: fonts installed on your computer
• Default value: Arial
• Example: Tahoma

Font height (Labels)

Sets the font height for label texts.

It also controls the height of texts displayed on generic products and products without images which use the shape named box.

• Supported values: positive numeric value [0-9 and decimal point]
• Default value: 2 cm, 20 mm, 0.79 inches, 0.02 m (according to Measurement unit)
• Example: 1.4

Advice: You can also adjust this value interactively. cf. Font size (tool).

Position (Labels)

The position of labels relative to each product or accessory.

Note: Only editable if View labels is checkmarked.

• Supported values:



Advice: On shelf/peg resembles the way labels are physically placed in stores.

Examples:

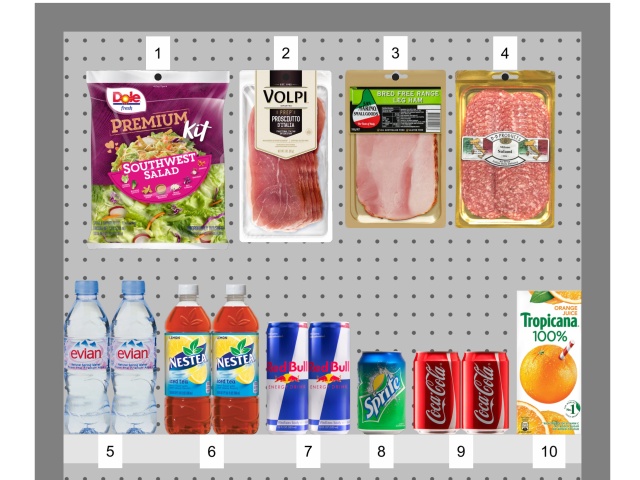

Position (Labels): On shelf/peg

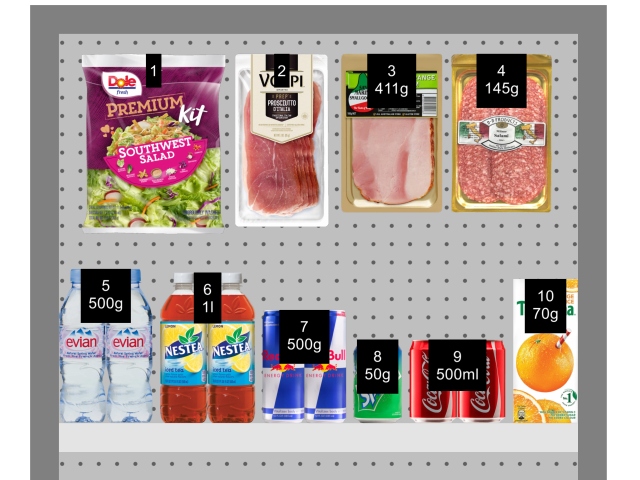

Position (Labels): Top

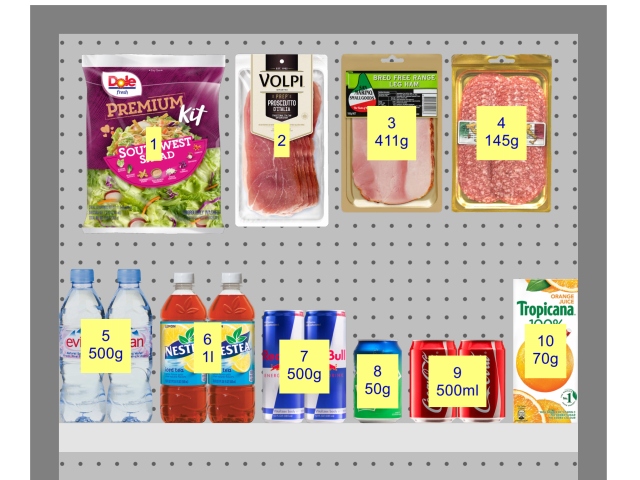

Position (Labels): Center

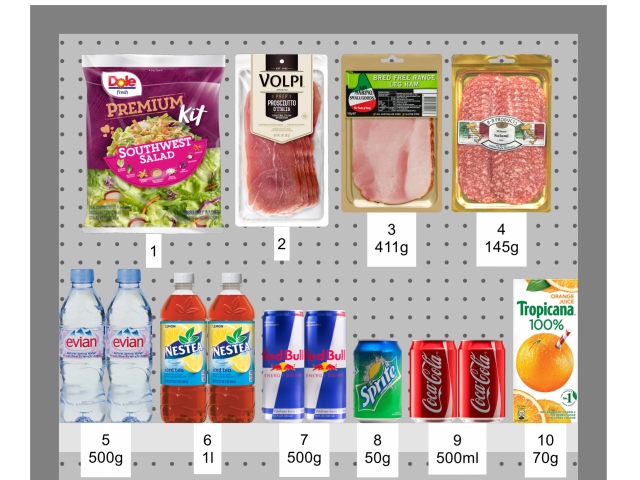

Position (Labels): Below

Group the labels

This checkbox toggles combining labels on products within blocks of same products.

Note: Only editable if View labels is checkmarked.

• Supported values:

• Default value: Not checkmarked

Examples:



Group the labels: checkmarked (with View as boxes)

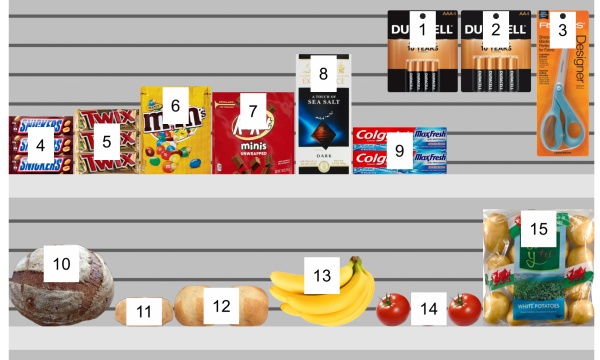

Group the labels: checkmarked (without View as boxes)

Content (Labels)

Here you can choose and organize the information to display on the labels.

Note: Only editable if View labels is checkmarked.

You can display one or several lines of information on each label. Each line is represented by a white tile such as this example:





Add a content to the labels

1. Click on the button with a + sign.
2. A dialog window opens, showing the list of available content. cf. Columns (Project item list) for details since the same choices are described there.

4. Select a content to display on the labels (for example Location).The dialog window closes.
5. The newly created label content is represented by a new tile such as this one:

6. The actual values are displayed on the labels of products and accessories in your planogram.

Modify a content of the labels

1. Click on the tile name.
2. A dialog window opens, showing the currently selected information.
3. Select a different information.
4. The dialog window closes.
5. The updated label content is represented on the corresponding tile.
6. The updated values are displayed on the labels of products and accessories in your planogram.

Re-order content of the labels

1. If you have several tiles, grab the two lines on the tile and drag it up or down.
2. The tile is repositioned and the order changed.
3. The labels are updated on products and accessories.

Delete a content of the labels

1. Click on the X on the tile.
2. The tile is deleted.
3. The labels are updated on products and accessories.



Examples:

Content (Labels): Location

Show bay labels

This checkbox toggles the display of labels on Bay if View labels is checkmarked.

• Supported values:

• Default value: Not checkmarked

Example:



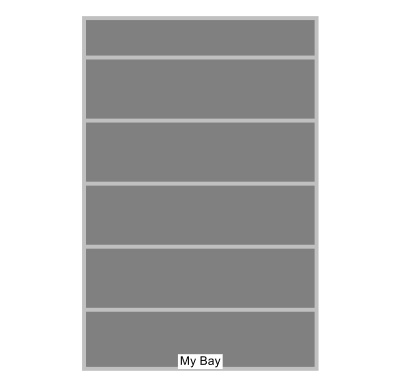

Show bay labels: checkmarked

Object display style

These checkboxes control the visual aspect of objects in the visualization area, exactly as the corresponding buttons and menu items. Consult:

• View as boxes
• View edges
• Highlight overlaps

Object visibility

These checkboxes control the visibility of various objects in the visualization area, exactly as the corresponding buttons and menu items. Consult:

• View front panels
• View peg hooks

Dimensions

Dimensions can be displayed in your planograms to assist you when placing products, building or resizing shelving and room elements.

View dimensions

This checkbox toggles the visibility of dimensions, exactly as the corresponding button and menu item. cf. View dimensions.

Color (Dimensions)

Sets the color of the dimension lines and text if  is checkmarked.

The color can be specified as follows:

Color text field:

• Supported values: HTML color codes (with or without the # prefix, not case-sensitive). Complete reference of theses HTML color codes can be found for example at:

• Default value: #000000 (black)
• Example: #FFFFFF (white)

Color sample:

1. Click on the color sample next to Color to display the color palette.
2. Select the desired color.
3. Click OK.

Font (Dimensions)

Sets the font height for dimension value texts if  is checkmarked. The size of the dimension line arrows is also adjusted accordingly.

• Supported values: positive numeric value [0-9 and decimal point]
• Default value: 0.3 cm, 3 mm, 0.12 inches (according to Measurement unit)
• Example: 0.4

Advice: The default value corresponds to standard dimension lines and text sizes, so you should only need to change this value when outputting images which will be printed in very large format.

Warning: In the visualization area of Publish, the onscreen dimension text size doesn't actually correspond to the set value, but rather to a scaled preview based on the value of the following parameter: Resolution (Single pictures).

Font height (Dimensions)

Sets the font height for dimension texts if  is checkmarked. The size of the dimension line arrows is also adjusted accordingly.

• Supported values: positive numeric value [0-9 and decimal point]
• Default value: 0.3 cm, 3 mm, 0.12 inches (according to Measurement unit)
• Example: 0.4

Advice: The default value corresponds to standard dimension lines and text sizes, so you should only need to change this value when outputting images which will be printed in very large format.

Warning: When you are in the task named Publish, the dimension text size in the visualization area doesn't actually correspond to the set value, but rather to a scaled preview based on the value of the following parameter: Resolution (Single pictures).

Flow direction

View flow direction

This checkbox toggles displaying arrows indicating the direction of traffic, exactly as the corresponding button and menu item. cf. View flow direction.
